Full Overhead Mounting Board Plans - DXF FILE

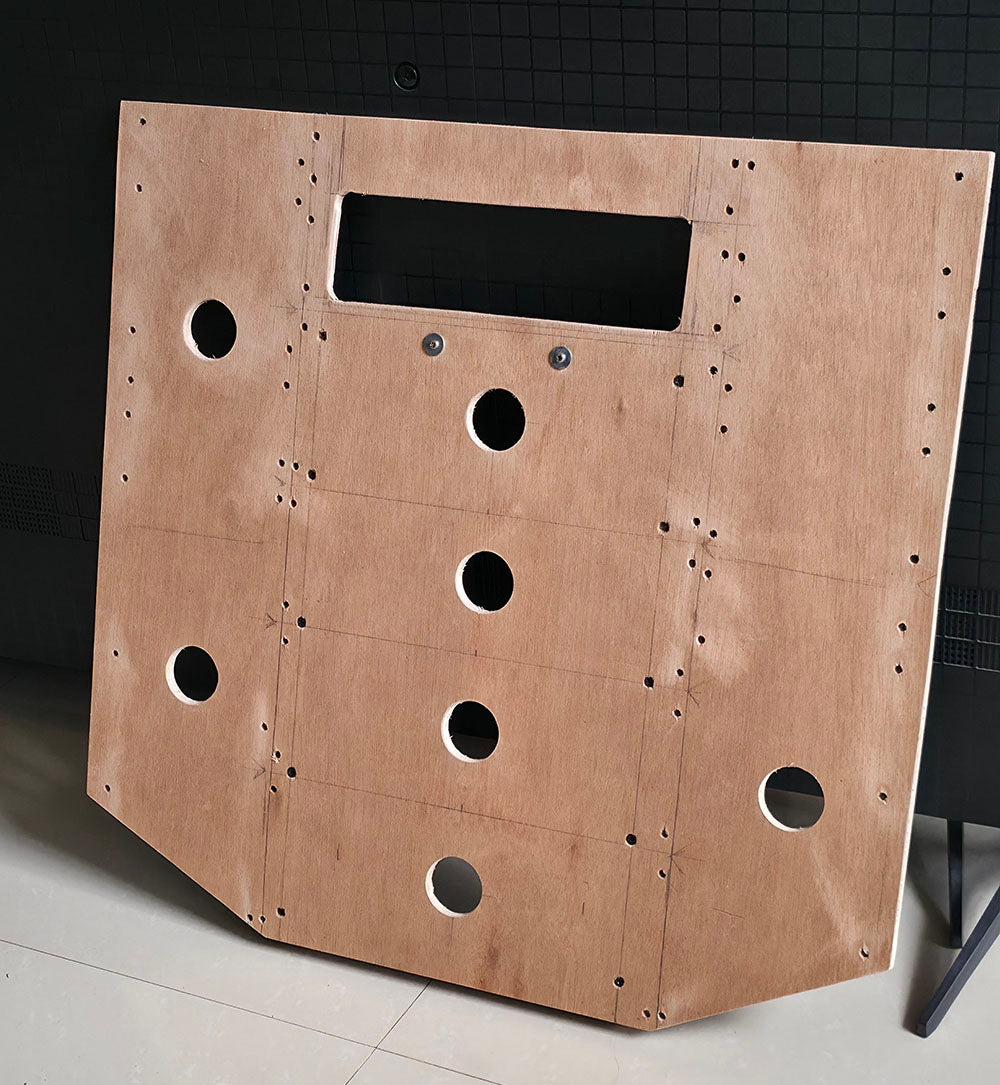

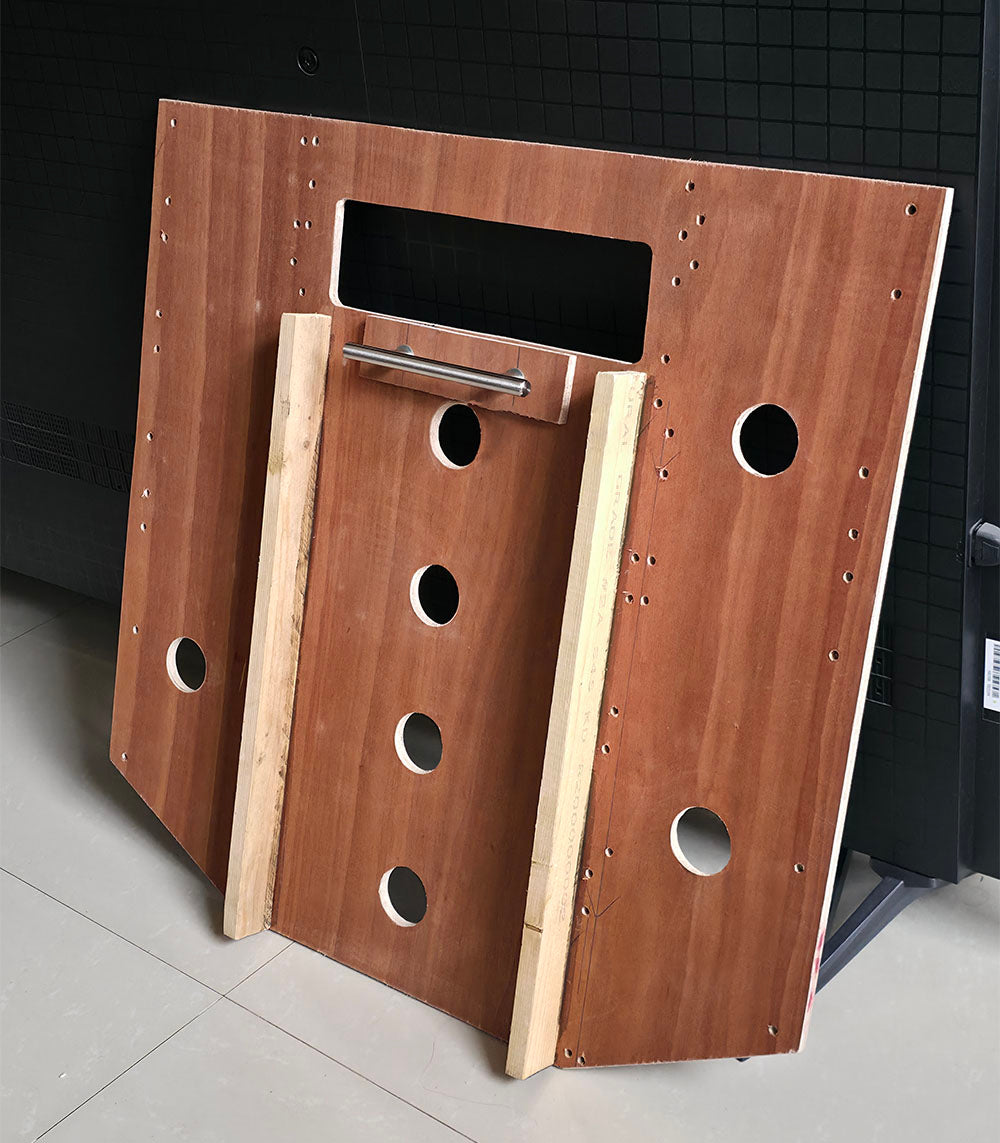

This is the DXF file used for CNC for the cutting of the 1/2 or 3/4 inch Plywood mounting board for the entire SL3 Overhead modules.

IMPORTANT :
The mounting board MUST be Plywood and NOT MDF.
Plywood is layered wood veneer, with each layer in perpendicular wood grain orientation from the other, making it strong and warp-free.   MDF on the other hand, is made of compressed wood fibers cured in Resin or other curing material which in time, will warp/bend under load, hence not suitable as overhead mounting board.

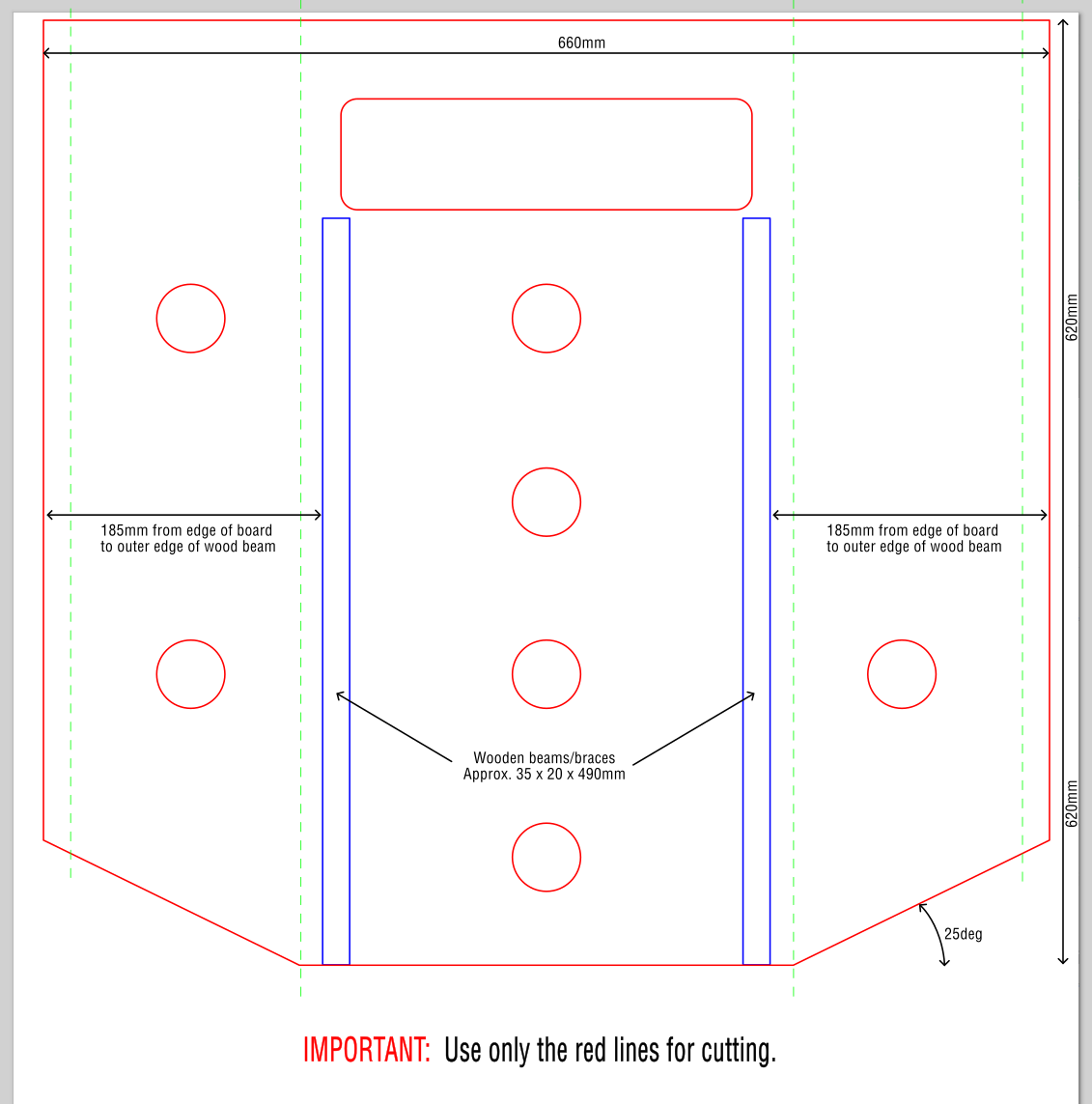

In the DXF file, use only the red lines for cutting.  The rest are just illustrations.
