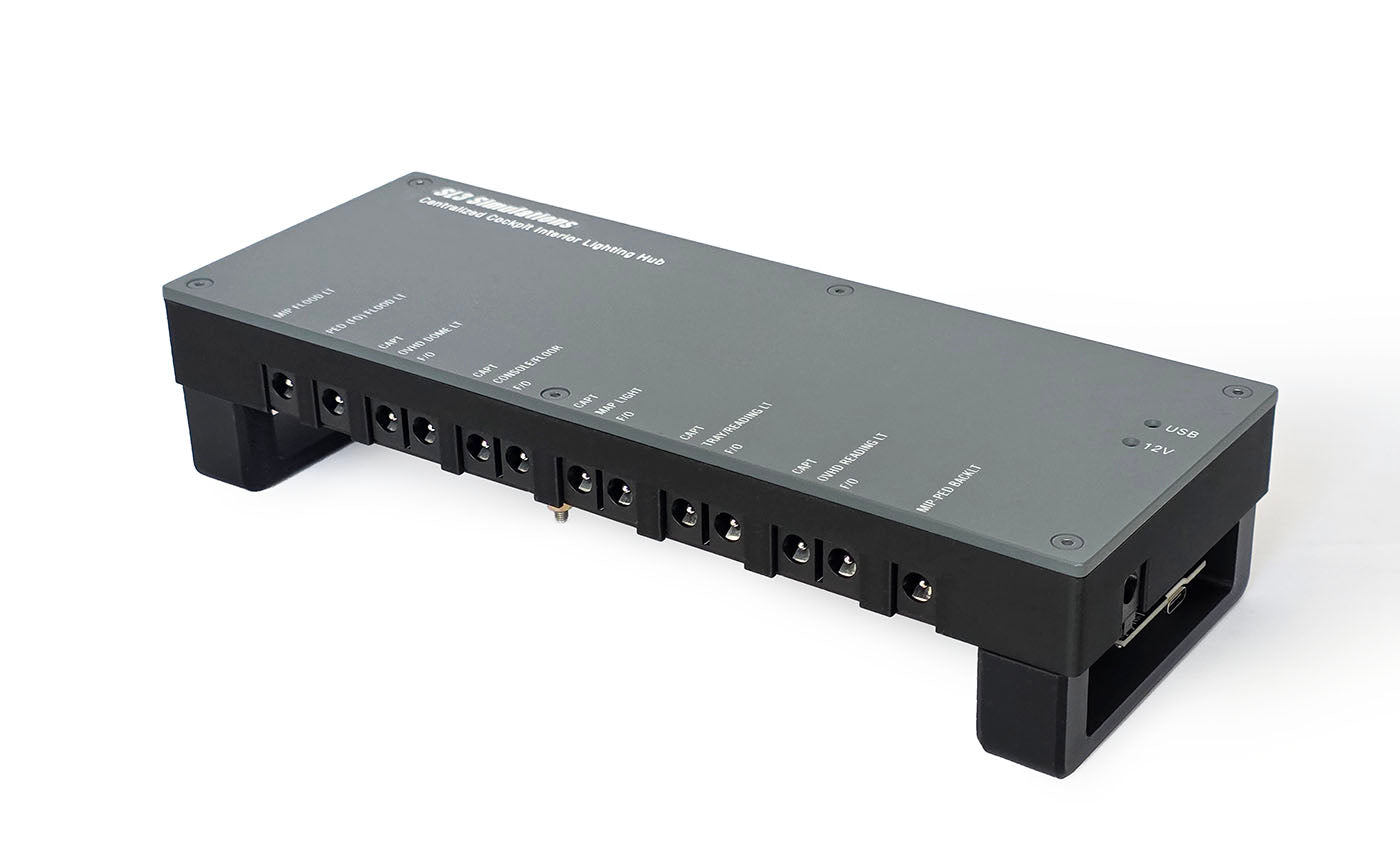

SL3 Centralized Cockpit Interior Lighting Hub

The SL3 Centralized Cockpit Interior Lighting Hub is designed best for semi or fully enclosed home cockpit setup.  It brings multiple cockpit interior lights into one organized control system for your A320 home cockpit. Designed for 12V LED strips/modules and MobiFlight integration, it provides centralized power, dimming, and switch logic for all your interior cockpit lighting.

Key Features

• 13 independent controllable 12v light output source
• 8 potentiometer support
• 2 on-off switch interface

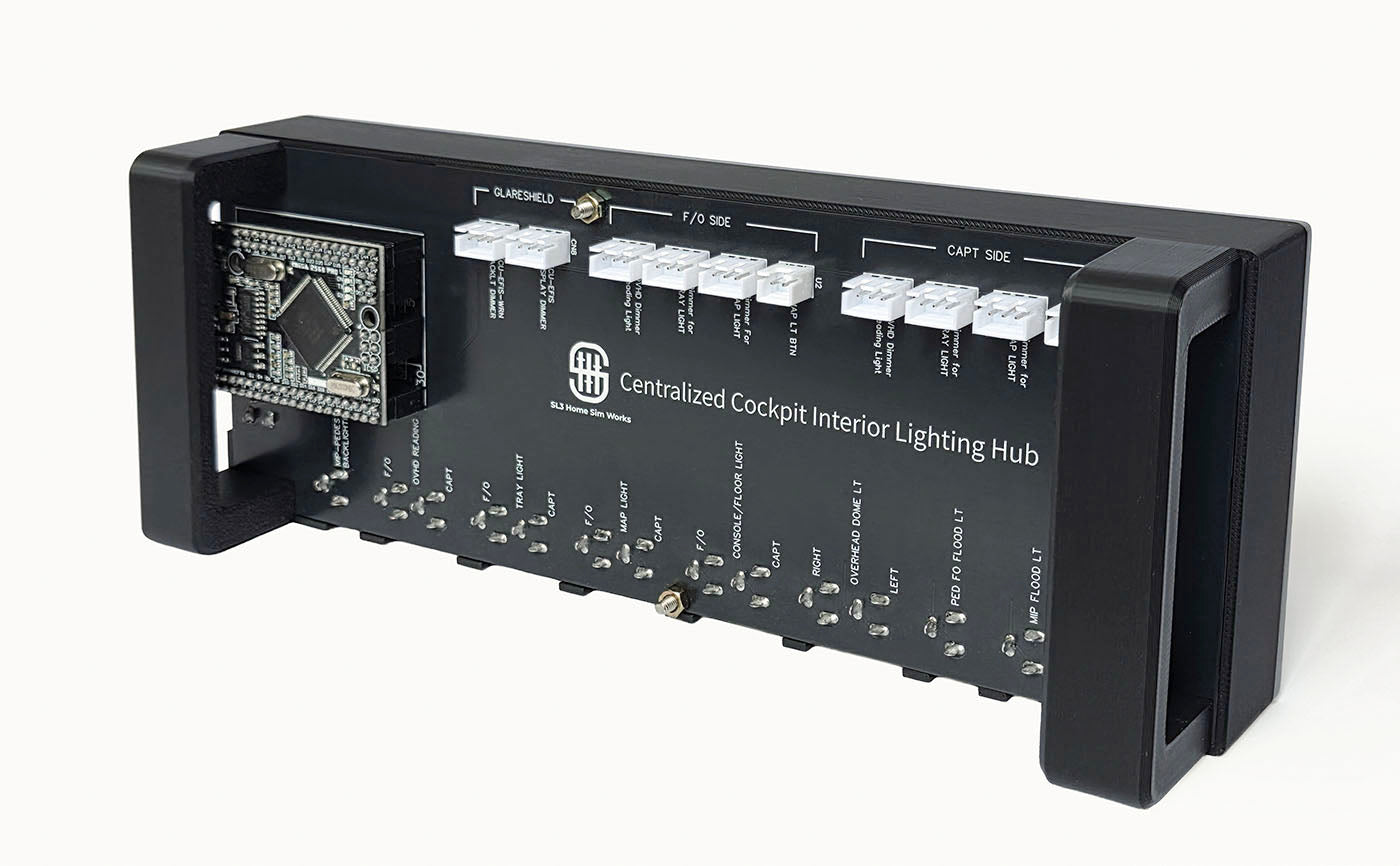

• ATMega2560 controller with USB connection
• Requires and Runs on Mobiflight

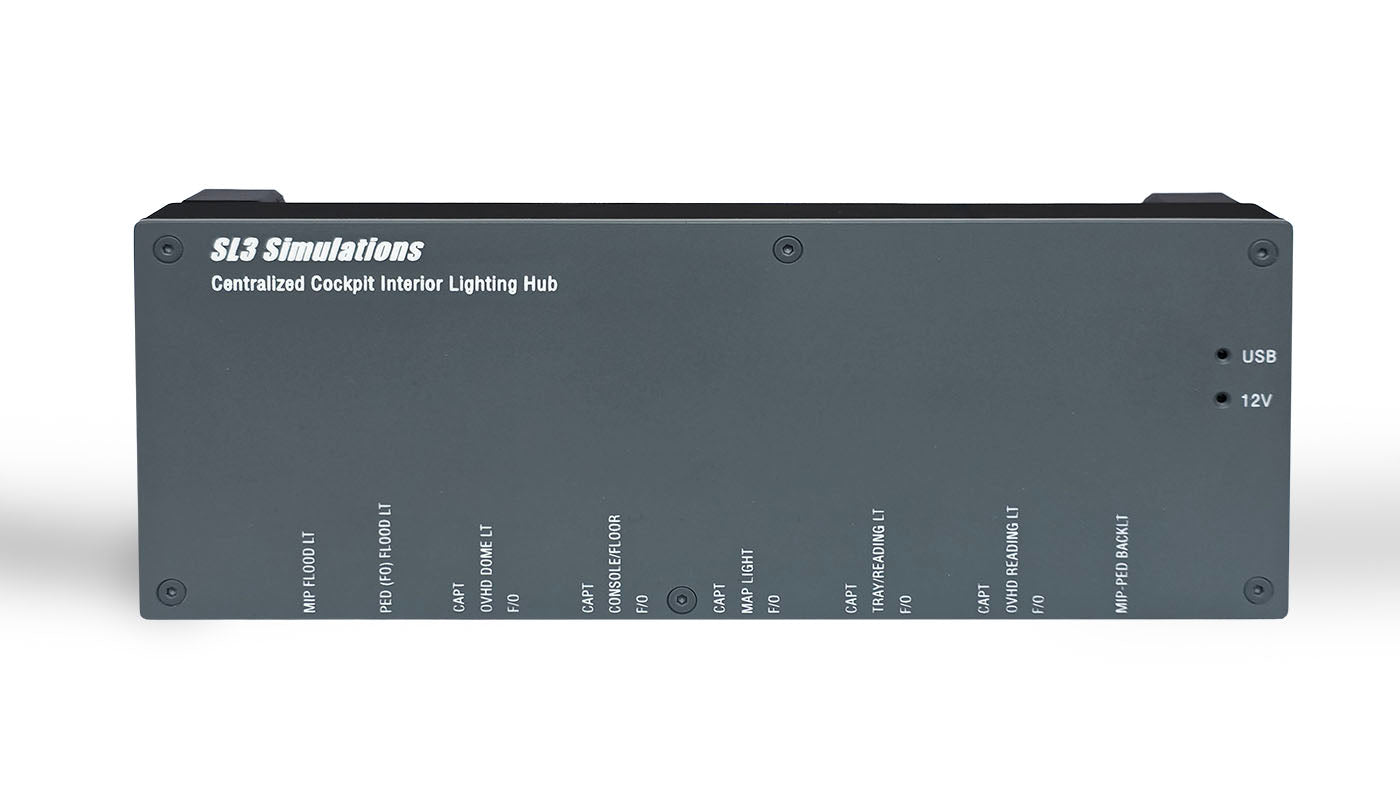

What it controls

• MIP Flood Lights (if you own the SL3 FLOOD LT, you may keep your light there, or move them here)
• Pedestal Flood Light (controlled at FO side)
• Glareshield FCU-EFIS dimming
• Overhead Dome lights
• Floor/Console Lights for Capt and FO

• Tray/Table Lights for Capt and FO
• Window-Mounted Map/Charts light
• Overhead Reading Lights for Capt and FO
• Auxiliary MIP-Pedestal Panel Backlighting plug - for your DIY panels using external 12v backlighting - connect here and you have a dimmable backlight synced with sim

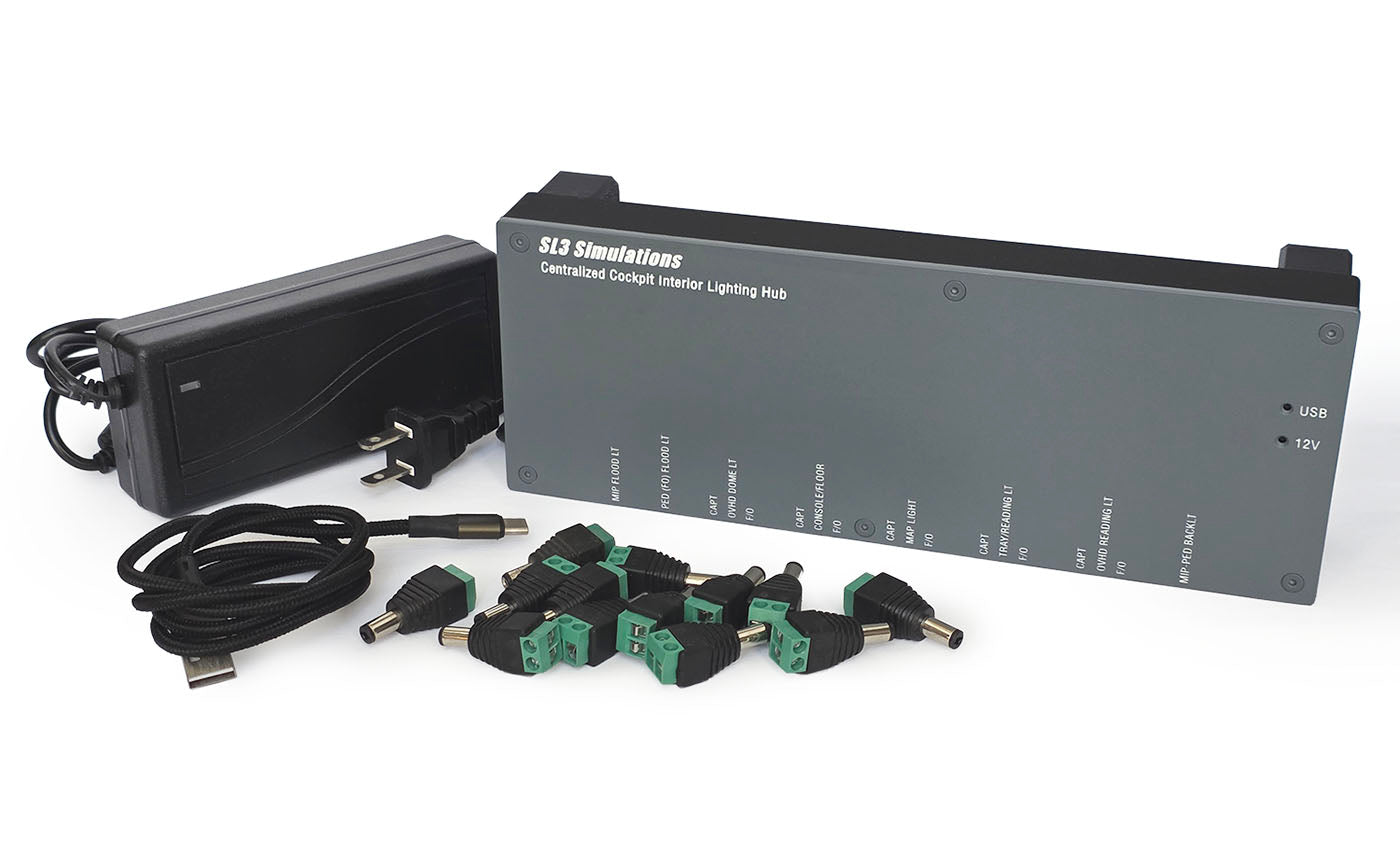

What's Included

• 12v 5000mA Power Adapter (US Plug only, sorry)
• Barrel Jack adapters for each 12V socket
• USB Cord
• Pre-Configured Controller, with ready-made MF Config File from the SL3 Website

Pre-Requisite

If you own the SL3 PFD-ND Illumination Panels, Warning Panels or the SL3 Compact OVHD Panel, please download their latest corresponding Mobiflight Config Files to enable these panels to "talk" with the Hub (eg. FLOOR-CONSOLE light switch, OVHD DOME light switch, Warning Panel backlighting to tie up with the Glareshield dimmers instead of the MIP Integ Backlighting)

Scope, Compatibility and Limitation

• The hub works and operates only within the Mobiflight environment. Any non-SL3 panels that addresses the same internal lighting LVars in the Sim may still be controllable by the Hub.  For example, the Hub controls the WinCTRL FCU-EFIS display and backlight brightness.
• Currently supports the FenixA320 for MSFS2020/2024.  We are working on the possibility of having all the interior lights DataRefs for Toliss (X-Plane12) where possible, as well as for FBW A32NX.
• This hub is intended for 12V LED strips or low-power LED modules.  Any high wattage lighting (30-50W or higher) is NOT recommended.  If you must do this, please replace the power adapter with a high power rating that matches the power demand of your lights.
• Recommended installation location:  Behind the FCU on the cockpit dashboard.  This allows for a more uniform wiring distribution to the overhead, sides of cockpit, Glareshield and MIP.

Made-To-Order Notice

All SL3 products are (almost all) hand-crafted and hand-assembled to order. We do not maintain mass-produced ready-to-ship stock.  Estimated production time may vary depending on current order queue and parts availability.  Lead time is around 10-15 days.
